How to Install Your New Signs
For New Construction & Renovations, as per 2010 ADA Standards for Accessible Design, After March 15, 2012.
|
Click here to download all these instructions as a PDF.
Click here to view the 1991 standards.
|
1. Verify the wall surface is smooth and free of any dirt or dust. Complete any wall treatments, such as wallpapering or painting, prior to sign installation.
|
|
|
2. Determine the mounting height for your signs. The ADA requires that the baseline of the lowest raised character be a minimum of 48" above the finished floor,

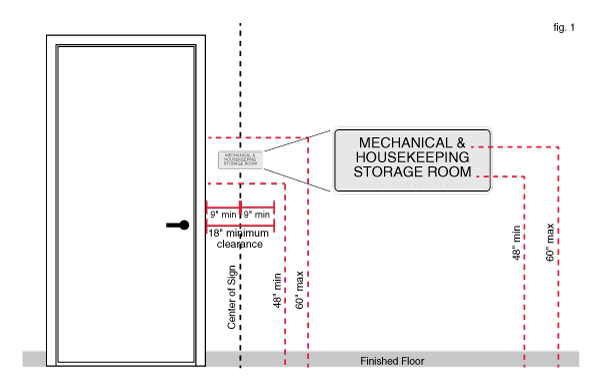

and the baseline of the highest raised character be a maximum of 60" above the finished floor. (see fig. 1)
|
|
3. For wall signs located near a door, the ADA requires signs to be mounted on the latch side of the door. Signs containing raised characters shall be located so that
there is a clear floor space of 18" minimum by 18" minimum, centered on the tactile characters. (see fig. 1 & 2)
|
|
Design Tip
We recommend installing our signs at 54" from the center of the sign to the floor for both ADA compliance and visual consistency.
|
Floor Clearance
Signs with raised characters must be centered on the letters in a clear floor space of 18" minimum by 18" minimum. This floor space must be outside of the swing of the door. (see fig. 2)
Floor Space Exception
If there is not 18" of wall space on the latch side of the door, you may install the sign with the center of the raised letters 9" from the latch side of the door.
|
|
4. There are three mounting methods:
|
Adhesive Tape
Remove the adhesive tape backing. Using a level to insure the sign is straight, press the sign firmly to the wall.
|
Silicone Sealant
|
For heavy signs, exterior signs, or when applying to textured wall surfaces, it is recommended to use a silicone construction sealant in addition to the adhesive tape on the
back of the sign. Apply silicone sealant as illustrated and remove the adhesive tape backing. Using a level to insure the sign is straight, press the sign firmly to the wall.
|
|
Screw Mounting
Using a level to insure the sign is straight, mark the wall through the screw holes. Drill holes and insert anchors. Holding sign in place, fasten screws into wall anchors.
For signs with frames and screw holes, first remove the sign face. Next, position the frame on the wall, and follow the above instructions. Replace the sign face.
|
If you have questions, or a special installation circumstance, please contact us. If you have questions about the ADA, or to understand your responsibilities, please visit www.ada.gov.
**The information provided to you on this page is ADA compliant to the best of our knowledge, however, it is not a replacement for legal advice.
|
You may install your signs directly on the door if the door fits these three requirements:
- The sign will be hung on the push side.
- The door has an automatic closer.
- The door does not have a hold open device.
- Verify the wall surface is smooth and free of any dirt or dust. Complete any treatments, such as painting, prior to sign installation.
- Determine the mounting height for your signs. The ADA requires that the baseline of the lowest raised character be a minimum of 48" above the finished floor, and the baseline of the highest raised character be a maximum of 60" above the finished floor. (see figure.)
- Install using one of the three methods: adhesive tape, screw mounting, or silicon sealant.
|
|
If you have questions, or a special installation circumstance, please contact us. If you have questions about the ADA, or to understand your responsibilities, please visit www.ada.gov.
**The information provided to you on this page is ADA compliant to the best of our knowledge, however, it is not a replacement for legal advice.
|
|
|
|

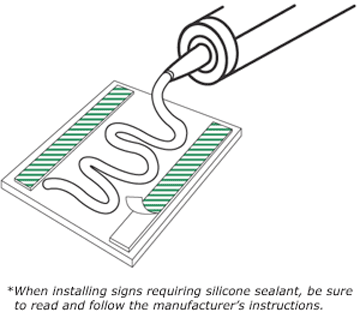

Follow these easy steps for silicone sealant installation*
1. Apply an even bead of silicone sealant covering all untaped areas.
2. Remove adhesive backing and apply sign to wall.
|
Note: Some wall surfaces (such as textured walls, vinyl wallcoverings and like surfaces) may not be suitable for adhesive tape installation. A thin bead of silicone sealant may be necessary.
* When installing signs requiring silicone sealant, be sure to read and follow the manufacturer's instructions regarding use of silicone/adhesive.
|
|
1. Verify the wall or ceiling surface is smooth and free of any dirt or dust. Complete any wall or ceiling treatments, such as wallpapering or painting, prior to sign installation.
|
|
2. Determine the mounting height for your signs. The ADA requires signs that project from the wall (perpendicular signs) or ceiling (overheads) to have a clearance of 80" from the finished floor to the bottom of the sign.
Signs should not interfere with or block the function of any doors, emergency equipment, or sprinklers.
|
|
|
3. Using a level to insure the sign is straight, mount the sign to the wall or ceiling with the supplied bracket and hardware. Depending on the wall or ceiling type, you may need to insert anchors prior to fastening hardware.
|
If you have questions, or a special installation circumstance, please contact us. If you have questions about the ADA, or to understand your responsibilities, please visit www.ada.gov.
**The information provided to you on this page is ADA compliant to the best of our knowledge, however, it is not a replacement for legal advice.
|
|
Signs With Frames
|
|
Mounting Height Guide
|
For signs with frames and screw holes, there are two options for mounting: adhesive or screws.
Note: Not all frame systems have the screw hole option; in that case, refer to step 5 of the appropriate instructions.
For screw mounting, first remove the sign face. Next, position the frame on the wall following the guidelines in steps 2 and 3 of the appropriate instructions.
Use screws to attach the frame to the wall. Depending on the wall type, you may need to use wall anchors. Replace the sign face.
|
|
Here's a simple formula to determine the mounting height for wall signs:
- Divide the Sign Height by 2
- Subtract the result from 60
- The result is the number of inches the bottom of the sign should be placed from the finished floor
Example:
- Sign height is 5.50"
- 5.50" ÷ 2 = 2.75"
- 60" - 2.75" = 57.25"
The bottom of the sign should be positioned 57.25" from the finished floor.
|
|
|
